Overview

EOSpro is a UE 4.27 – 5.7.0 plugin that wraps Epic Online Services SDK 1.19.0.7 with a comprehensive Blueprint surface — 262 BP nodes across 26 categories, including voice chat (RTC), an editor-side voice debugger, an Anti-Cheat scaffold, and an OSS bridge that routes purchases through whichever store (Epic Games / Steam / Google Play / App Store) is active at runtime.

It's a direct EOS SDK wrapper, not a custom OnlineSubsystem implementation — meaning you call EOS interfaces directly from Blueprint instead of going through UE's OSS layer. (The OSS bridge for purchases is the one exception, since it needs to route across multiple stores.)

Blueprint node gallery

Every node EOSpro exposes, grouped by category exactly as it appears in the Blueprint editor. Each image is a real screenshot of the bundled BP_EOSpro_Catalog Blueprint (in Documentation/BP_EOSpro_Catalog/). Click any thumbnail to open it full-size.

Blueprint nodes — explained

What each category does, with the screenshot of its nodes. Click any image to open it full-size.

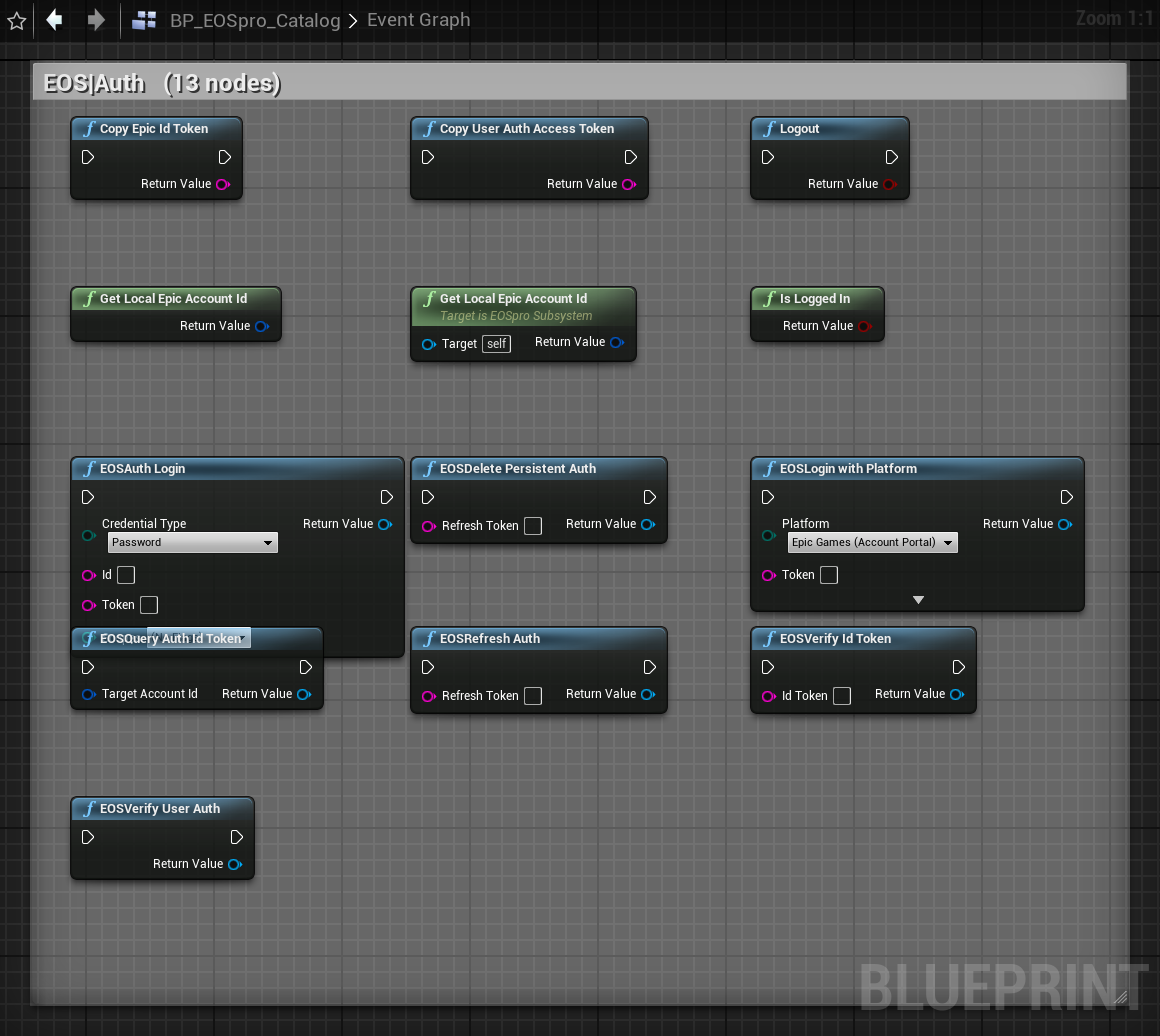

Auth 10 nodes

Epic Games account authentication. Use EOSLoginWithPlatform for the simplified path across Epic Games / Steam / Google / Apple / Device / DevAuth, then read GetLocalEpicAccountId. Also covers logout, token refresh and ID-token verification.

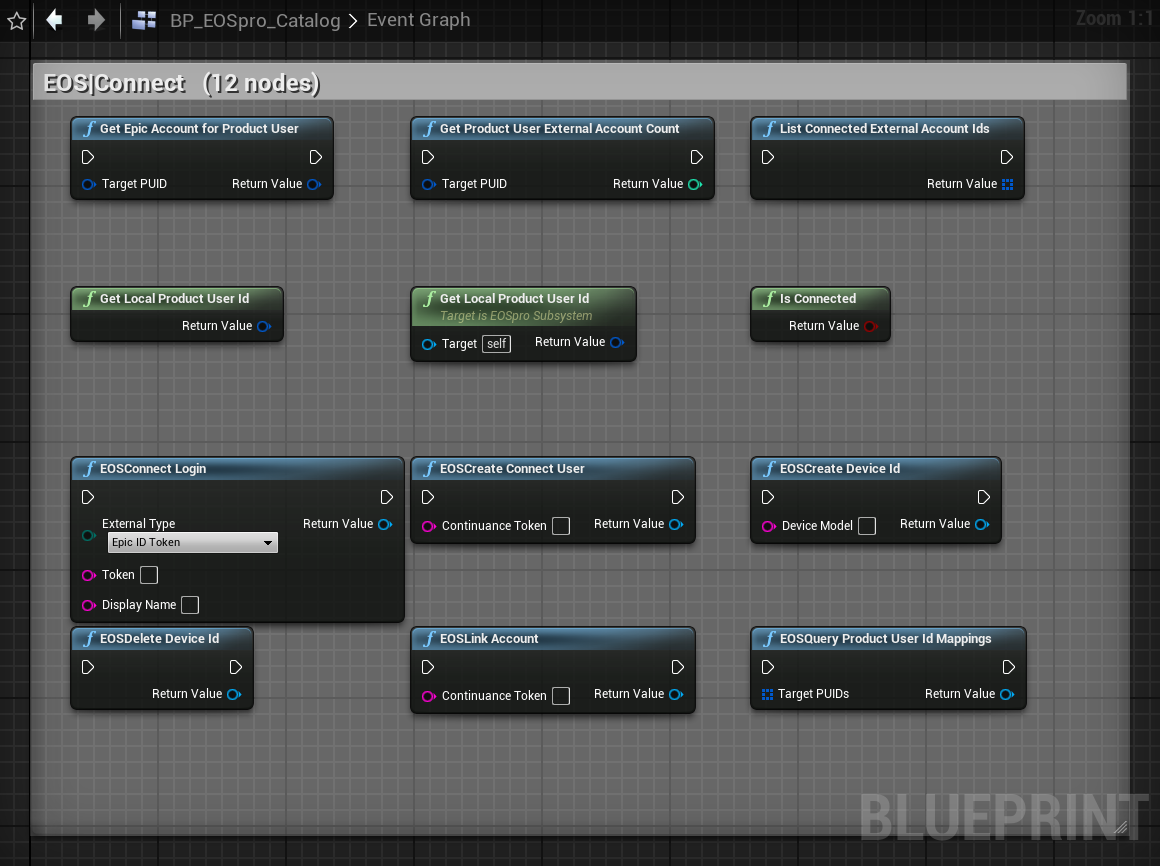

Connect 10 nodes

Maps an authenticated account to a Product User ID (PUID) — the identity every other interface uses. Create connect users, link external accounts, and create device IDs for anonymous login.

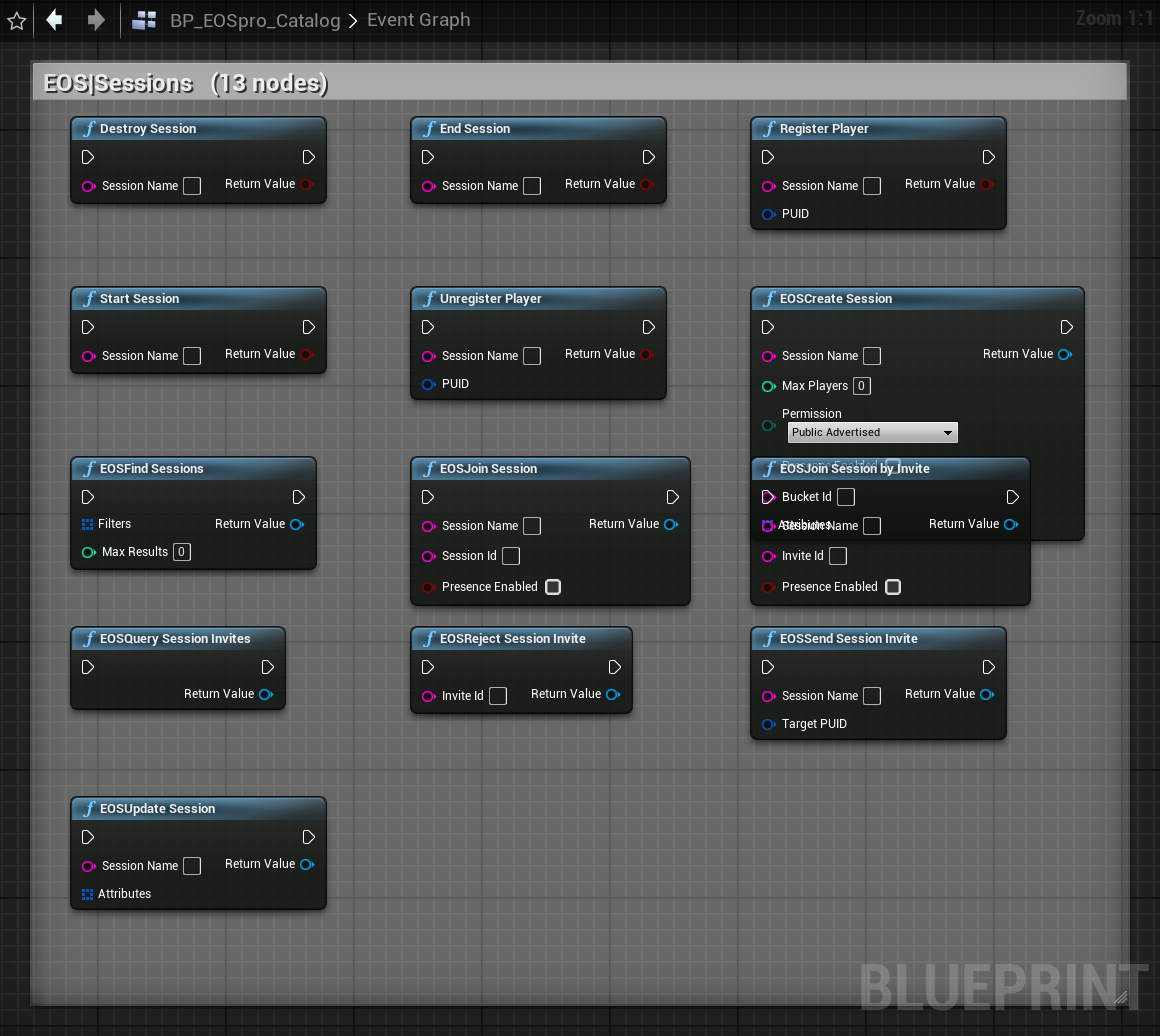

Sessions 15 nodes

Server/peer game sessions — EOSCreateSession, find by attributes, join, update, and send invites. The matchmaking surface for session-based games, plus register/unregister players.

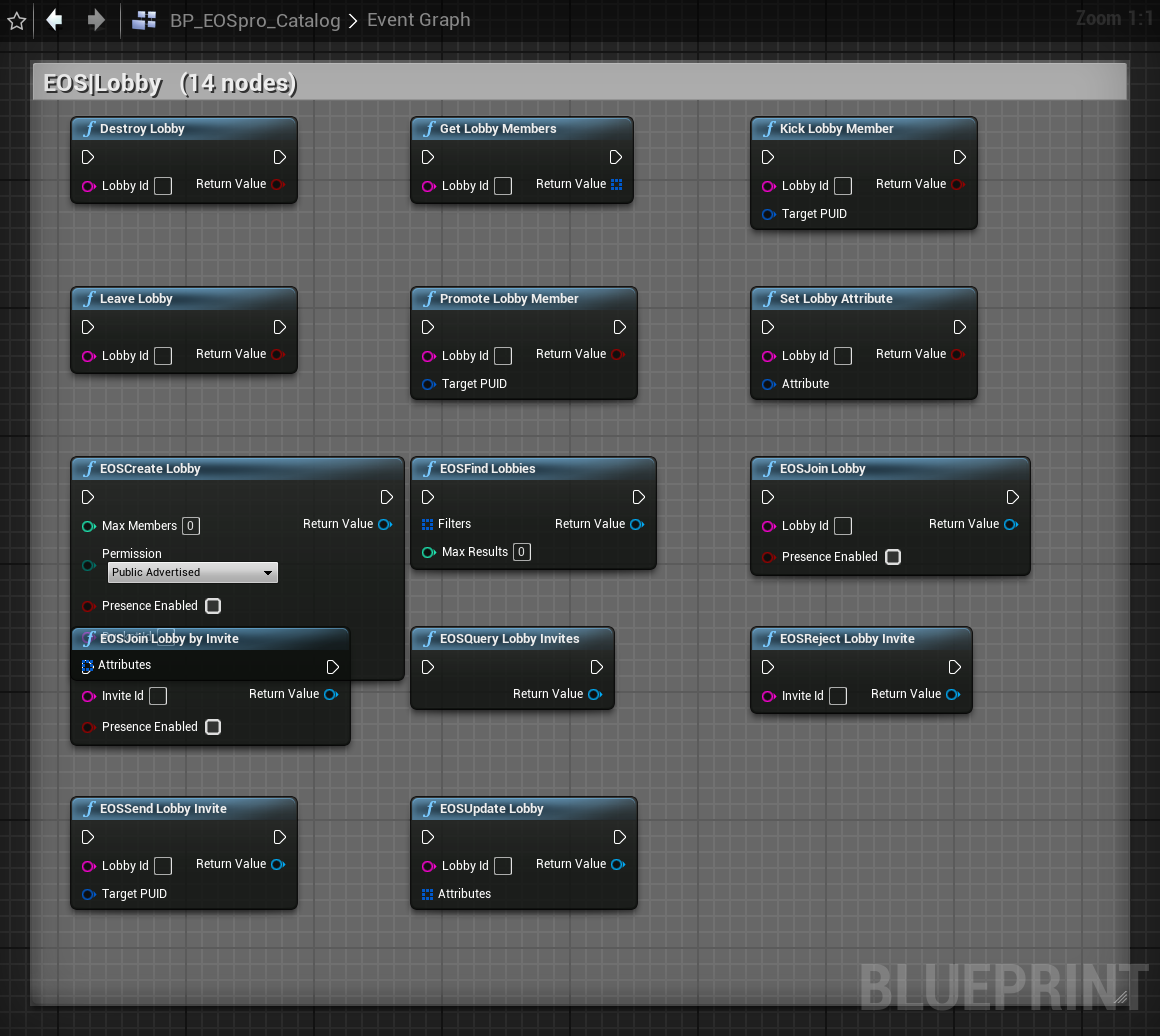

Lobby 18 nodes

Player-owned lobbies with attributes, member management and built-in RTC voice rooms. Create / find / join / update / invite, plus kick & promote members and read the lobby roster.

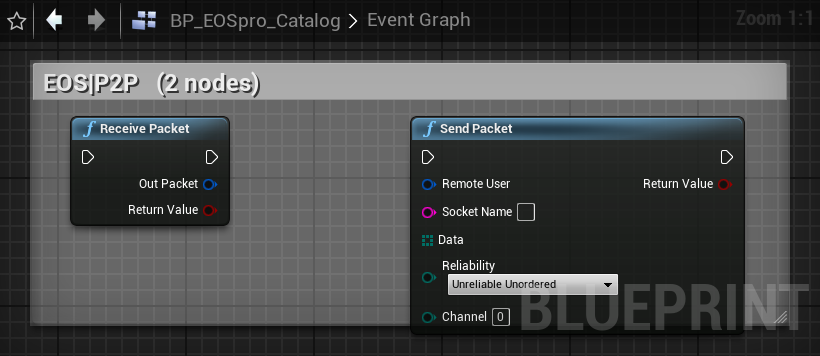

P2P 2 nodes

Direct peer-to-peer packets over EOS relays — SendPacket / ReceivePacket. NAT-punched transport for custom networking without a dedicated server.

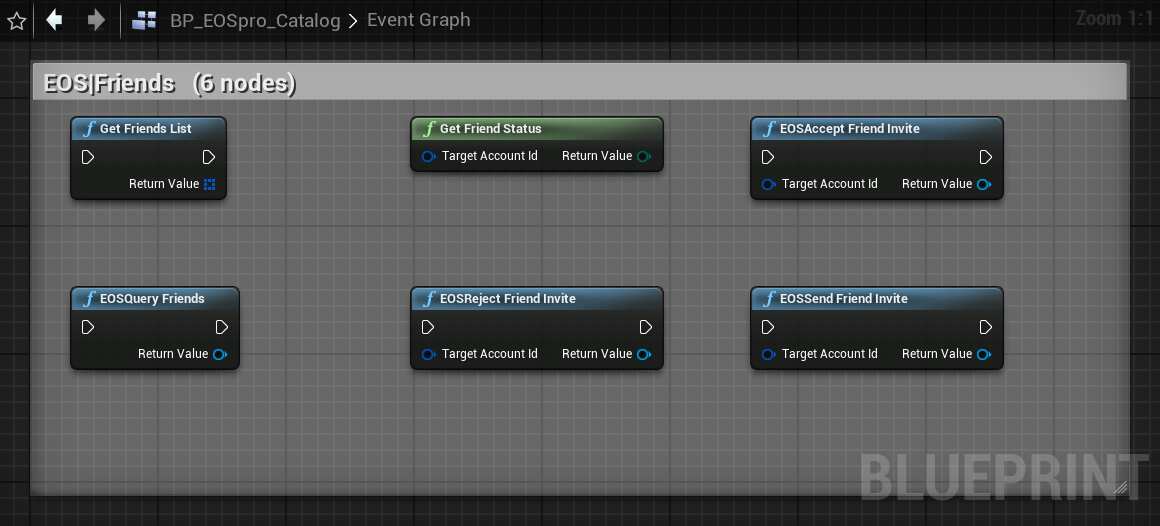

Friends 10 nodes

Query the Epic friends list, send / accept / reject friend invites, and read each friend's status (online, away, in-game).

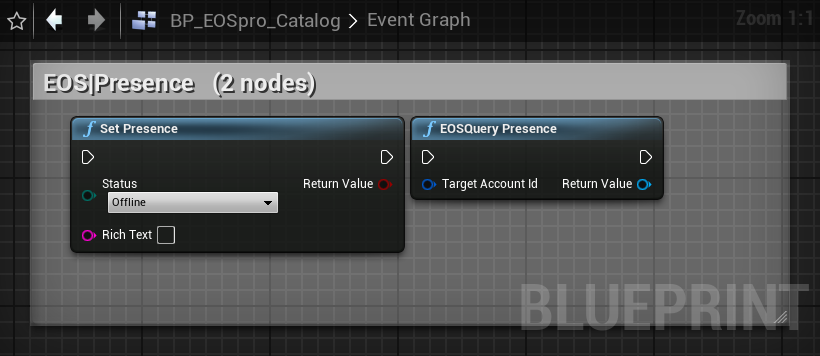

Presence 3 nodes

Set and query rich presence — status text and joinable state shown in the social overlay and to friends.

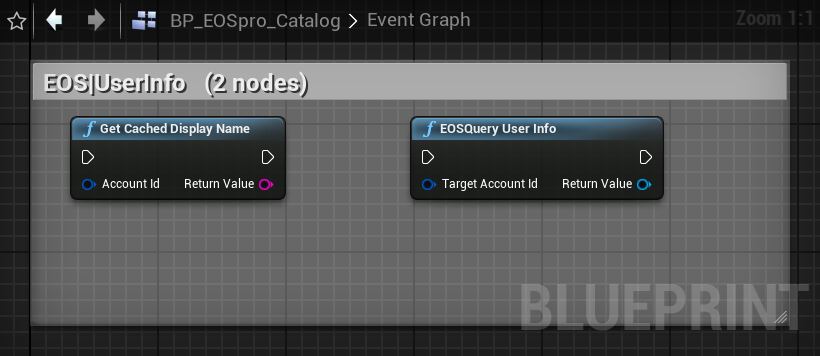

UserInfo 3 nodes

Resolve display names and external-account info for any account ID, with a cached GetCachedDisplayName for UI lookups.

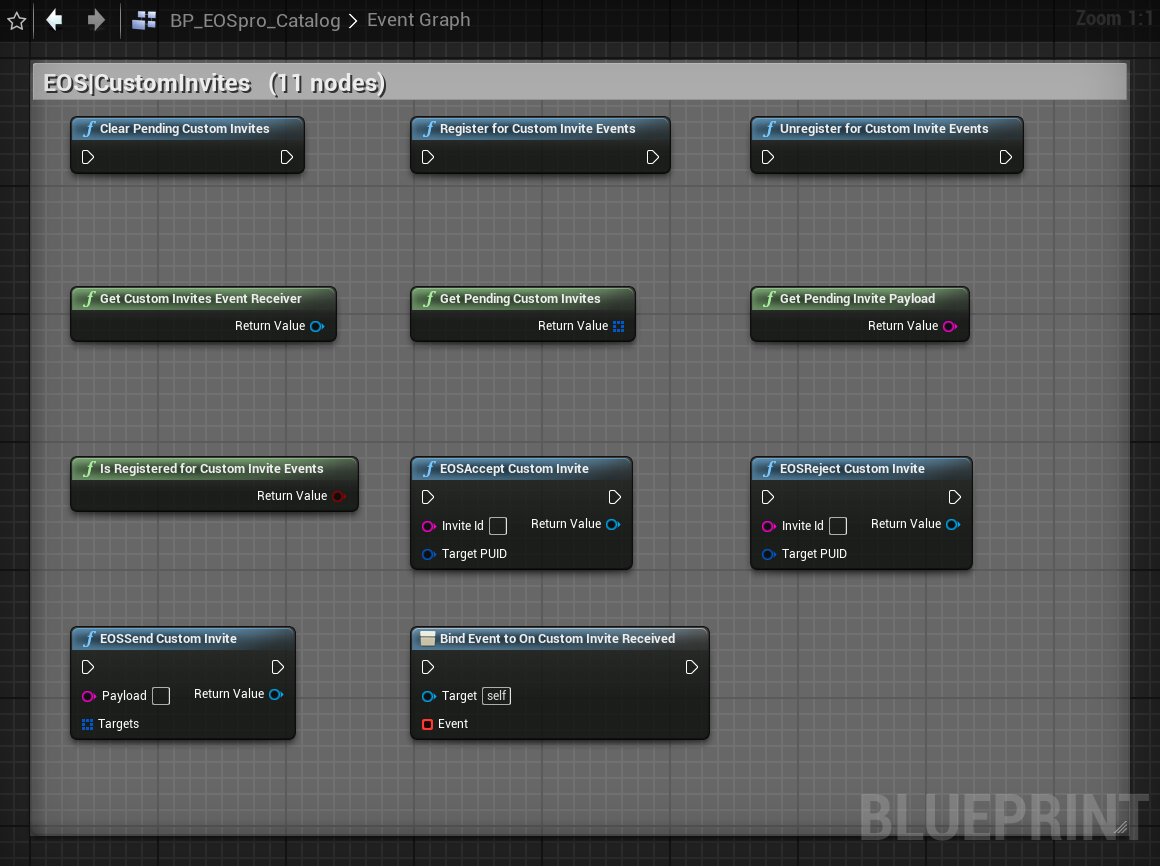

Custom Invites 13 nodes

App-defined invites with your own payload — send / accept / reject, plus an event receiver with a BlueprintAssignable delegate for incoming invites.

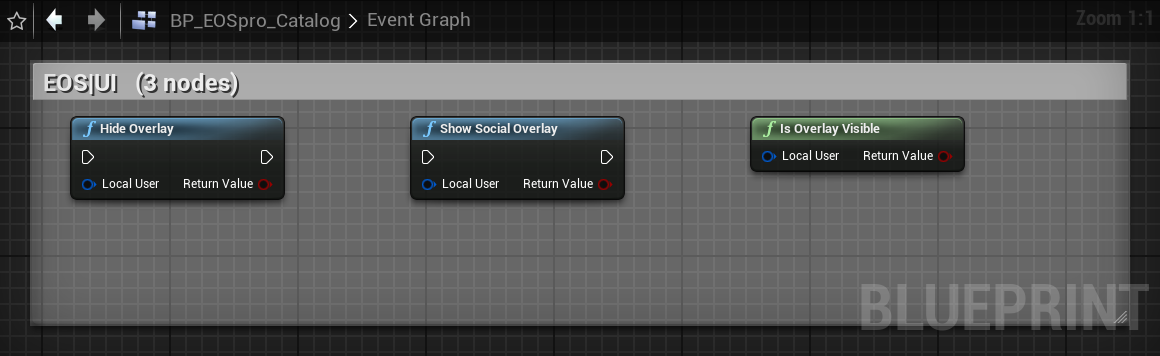

UI Overlay 3 nodes

Show / hide the EOS social overlay (friends, invites, account) and query whether it's currently visible.

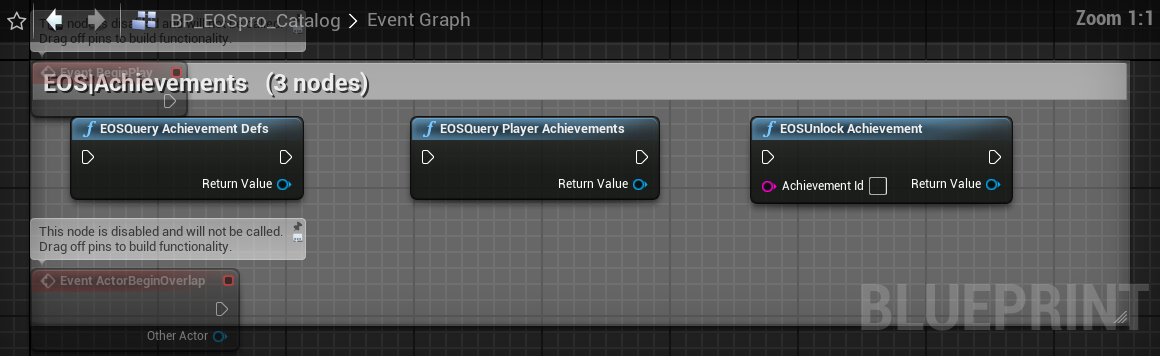

Achievements 5 nodes

Unlock achievements, query achievement definitions, and read a player's unlocked progress. Driven by Stats thresholds where configured.

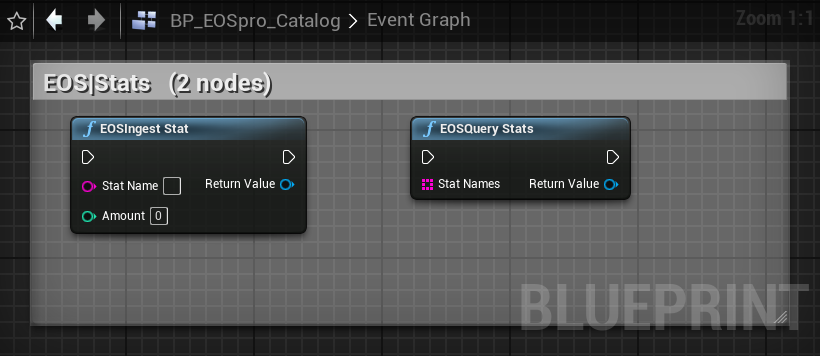

Stats 4 nodes

Ingest stat values and query them back — the data source behind leaderboards and stat-threshold achievements.

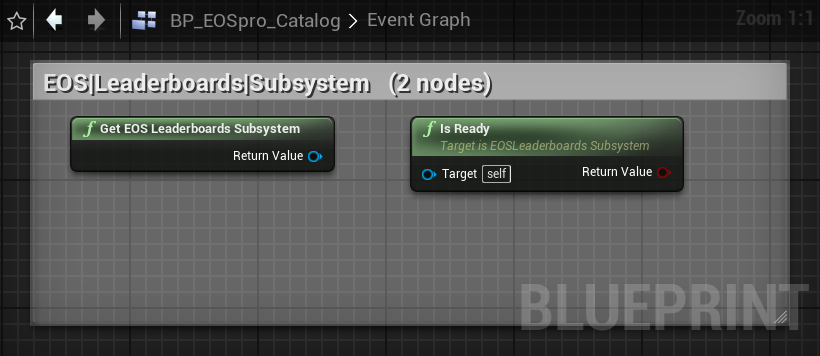

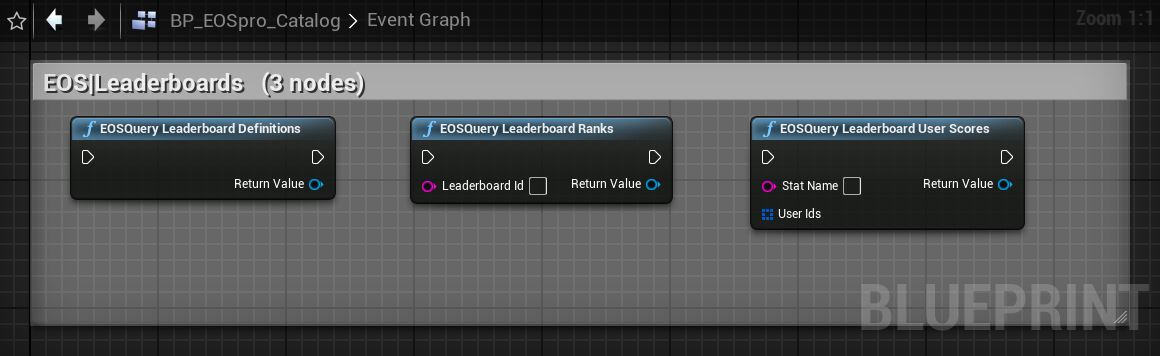

Leaderboards 6 nodes

Query leaderboard definitions, global ranks, and specific users' scores.

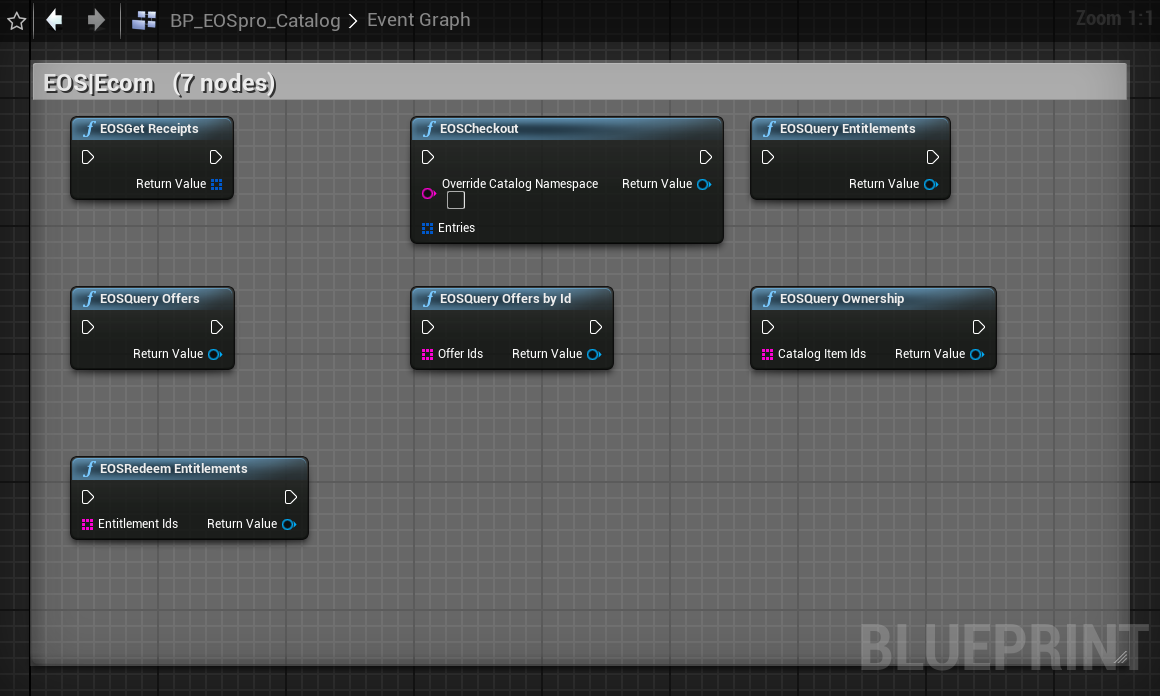

Ecom 13 nodes

Epic Games Store commerce — query offers (all / by-id), run EOSCheckout, verify ownership, and read entitlements & receipts.

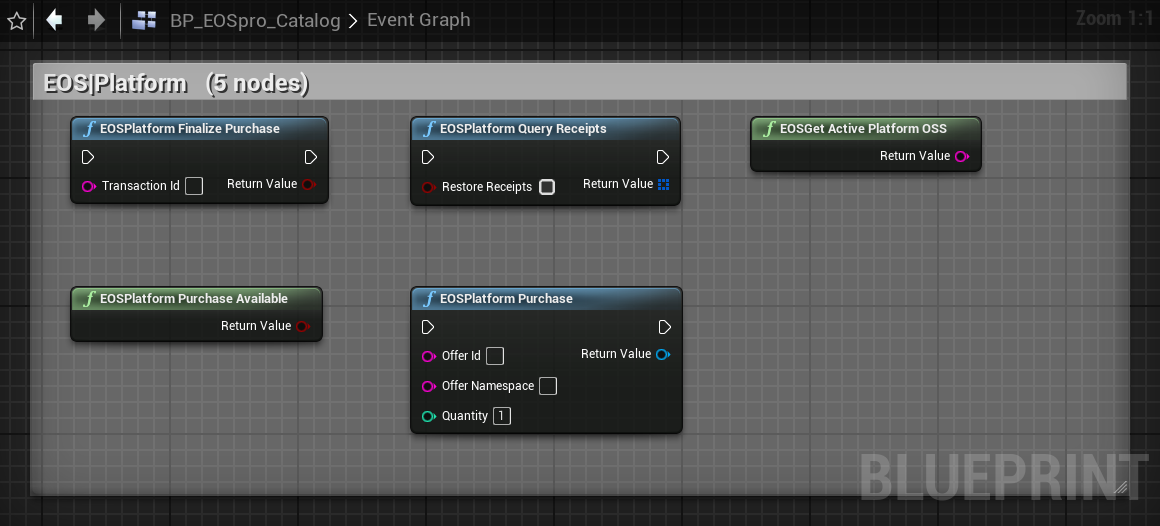

Platform — OSS purchase bridge 6 nodes

Cross-platform purchases — EOSPlatformPurchase routes through the engine's IOnlinePurchase for whichever store (Epic / Steam / Google Play / App Store) is active at runtime. No Blueprint branching needed.

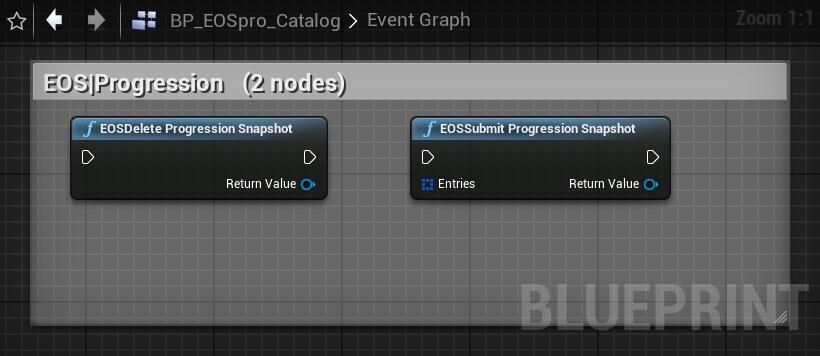

Progression Snapshot 4 nodes

Submit key/value progression snapshots of a player's progress to Epic's Progression service.

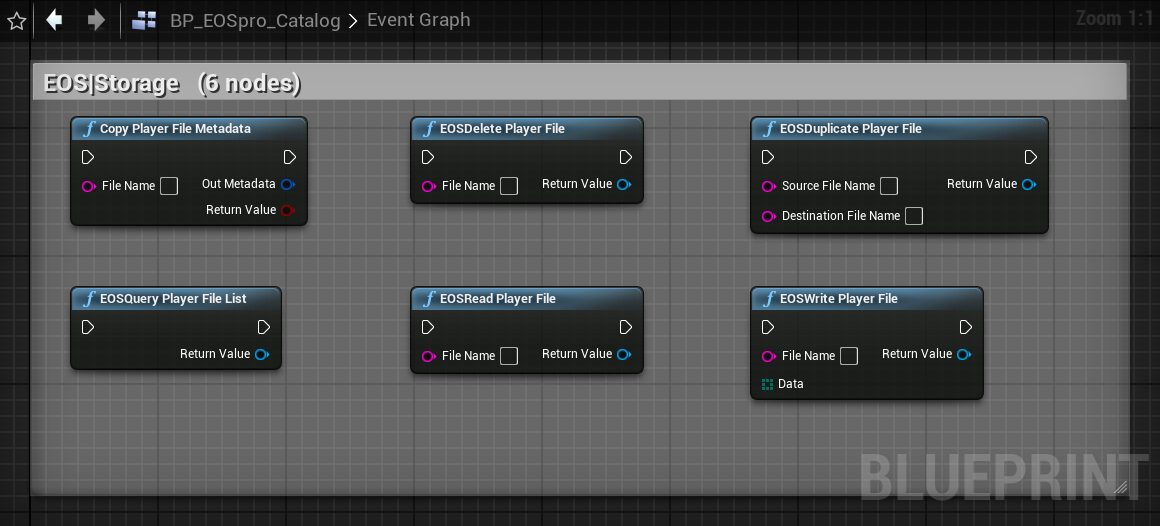

Player Data Storage 10 nodes

Per-player encrypted cloud saves — read / write / list / delete / duplicate player files, plus metadata copy.

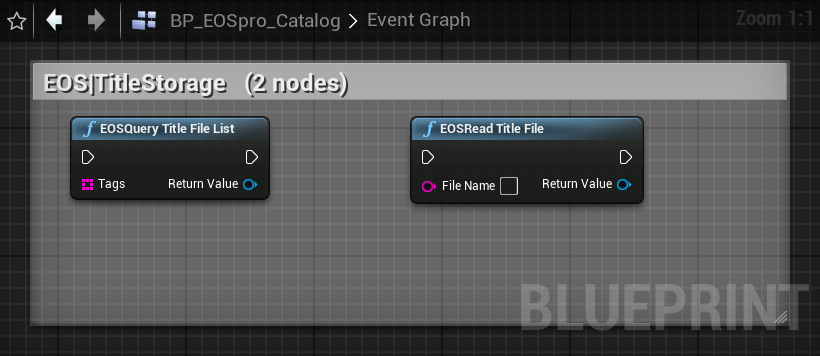

Title Storage 4 nodes

Read-only, title-wide cloud files (config, content manifests) shared by every player.

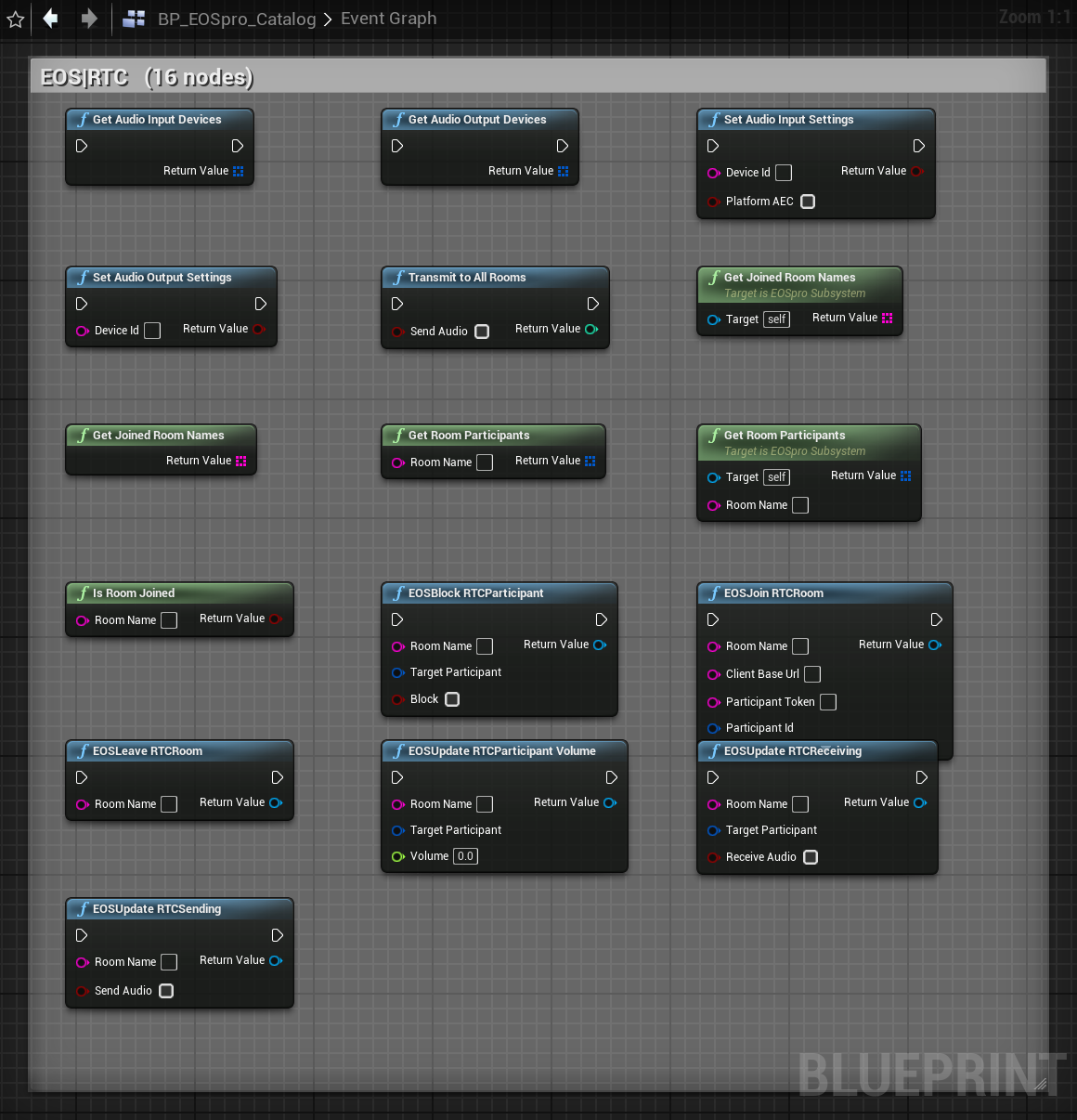

RTC voice 19 nodes

Real-time voice chat — join / leave rooms, manage input/output devices, mute, and a global push-to-talk. Lobbies can host their own RTC room automatically.

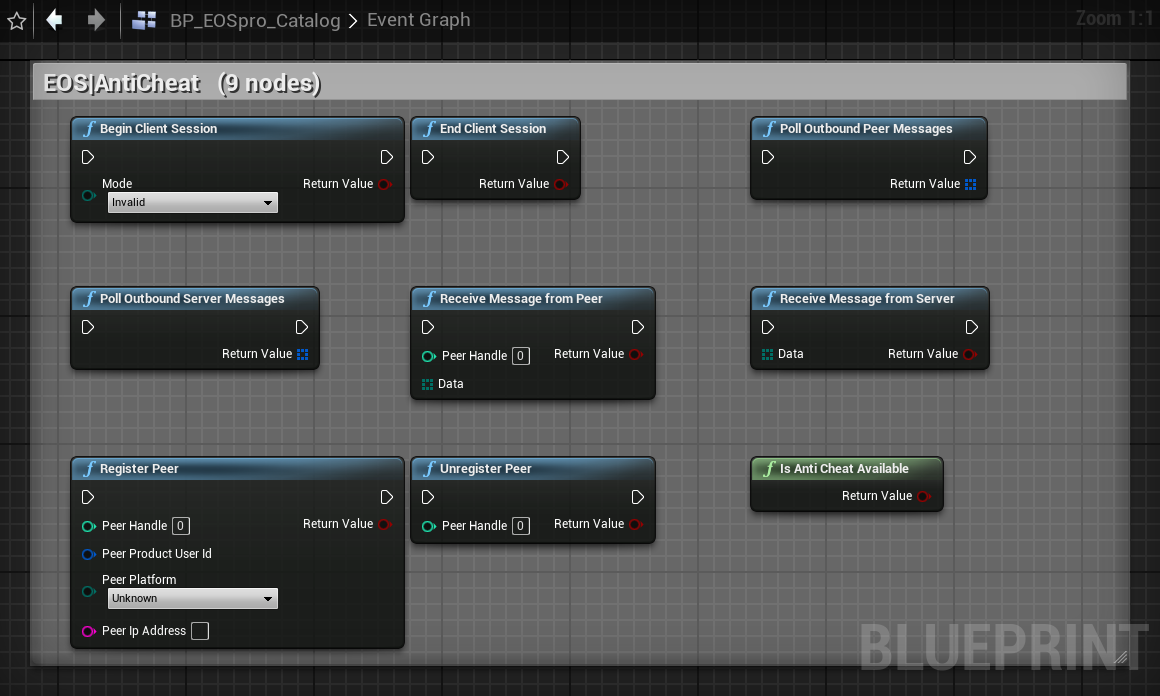

Anti-Cheat 9 nodes

Easy Anti-Cheat scaffolding — begin / end protected sessions, register peers, and bridge AC messages on both client and server.

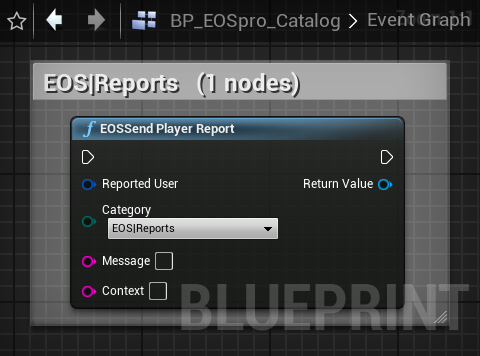

Reports 2 nodes

Submit player-behaviour reports (cheating, harassment, etc.) to Epic's moderation backend.

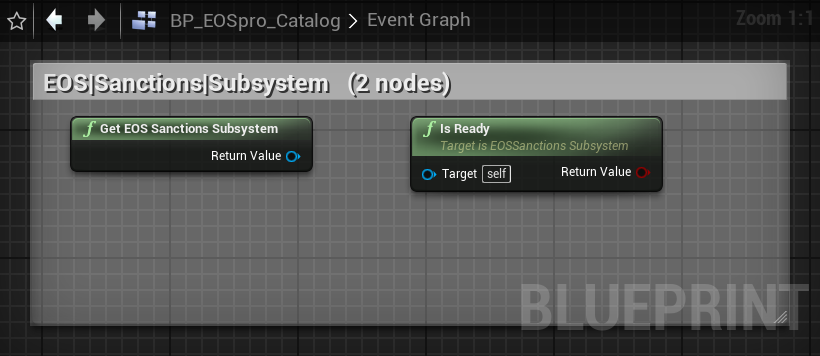

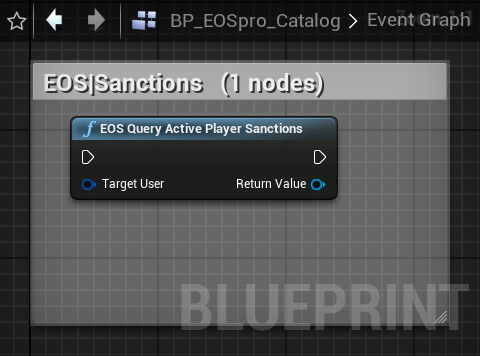

Sanctions 2 nodes

Query the active sanctions (bans, restrictions) applied to a player.

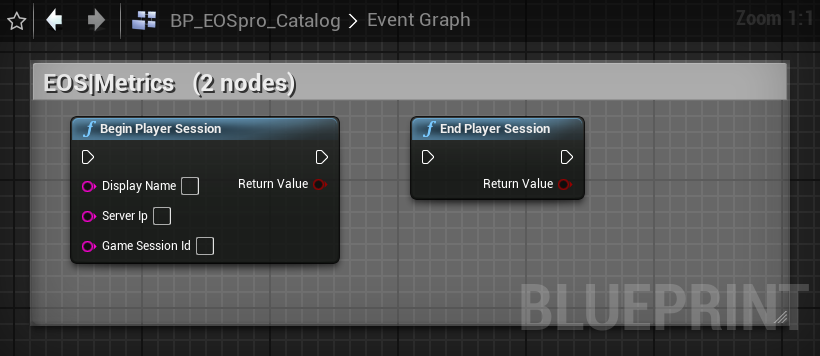

Metrics 2 nodes

Begin / end player-session metrics that feed the analytics dashboards in the Epic Developer Portal.

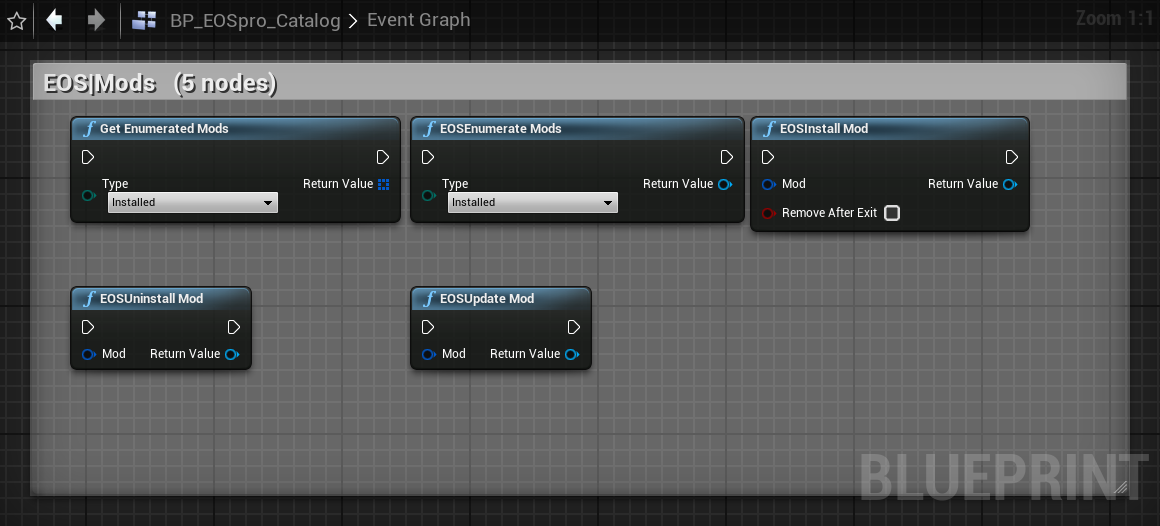

Mods 9 nodes

mod.io-backed mods — enumerate, install, uninstall and update mods for the title.

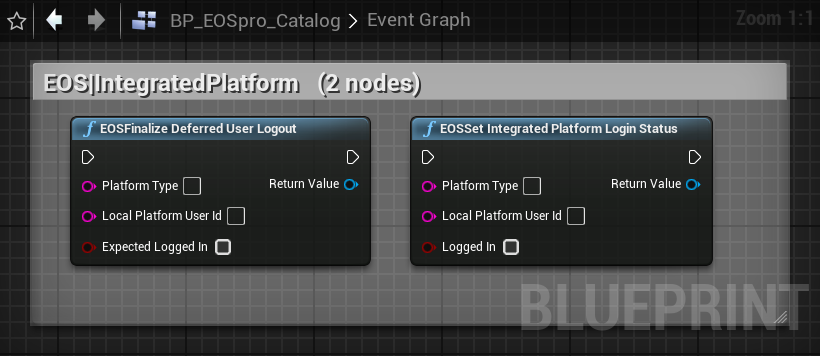

Integrated Platform 4 nodes

Report Steam / EGS login status to EOS so the overlay and friends integrate with the native platform.

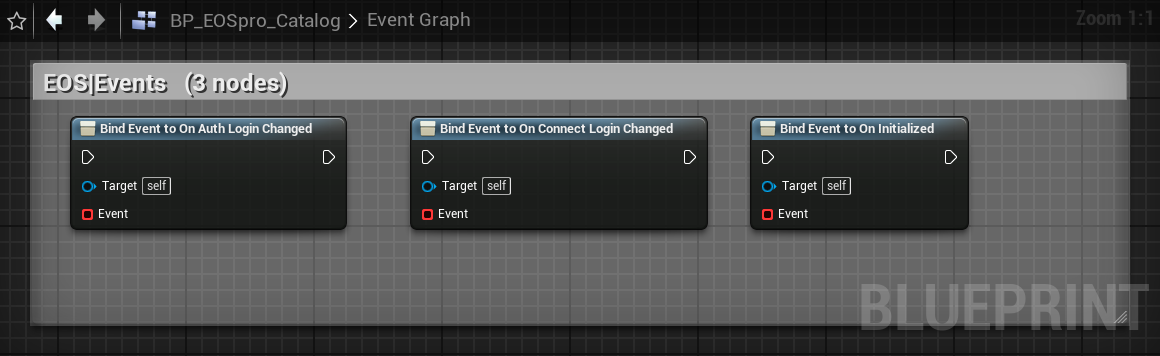

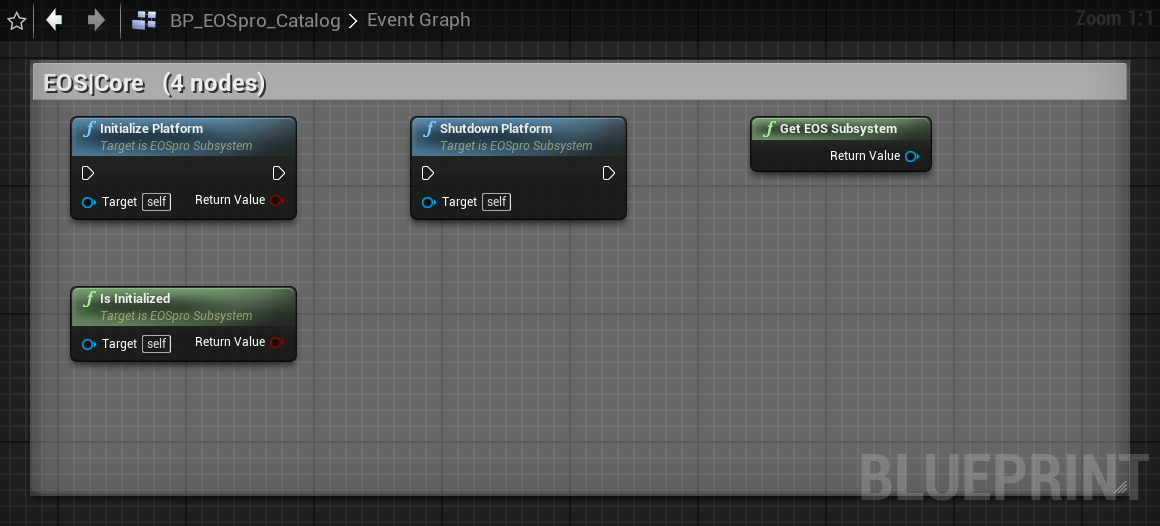

Core & Subsystems 46 nodes

The central UEOSproSubsystem owns the EOS platform handle and exposes every interface accessor, plus 21 typed per-category sub-subsystems (UEOSAuthSubsystem, UEOSSessionsSubsystem, …) for clean Blueprint access.

Installation & settings

1. Enable the plugin

EOSpro is already listed in PluginCore.uproject. In a new project add:

"Plugins": [
  { "Name": "EOSpro", "Enabled": true }
]

2. Fill credentials in Project Settings

Project Settings → Plugins → EOSpro → Credentials:

3. (Optional) Voice Chat section

Persistent device selection saves to DefaultEngine.ini and ships with packaged builds:

• DefaultMicrophoneDeviceId — empty = system default
• DefaultSpeakerDeviceId — empty = system default
• bDefaultMicMuted — start muted on JoinRoom
• bPlatformAEC — OS-level acoustic echo cancellation
• RTCBackgroundMode — leave rooms vs keep alive when backgrounded

4. (Optional) Anti-Cheat section

1. Download AC certificates from Epic Developer Portal → Anti-Cheat → Download integrity keys.
2. Place base_public.cer and base_private.key in Build/NoRedist/ (create the folder if missing).
3. Flip bAntiCheatEnabled = true in settings.
4. Make sure network authentication is enabled in Project Settings (default in new projects).

5. Build

"C:/Program Files/Epic Games/UE_5.7/Engine/Build/BatchFiles/Build.bat" \
  PluginCoreEditor Win64 Development \
  -Project="C:/AlphaCore/ASUS/MY-Cmd/UE4-Plugin/PluginCore/PluginCore.uproject" \
  -WaitMutex -FromMsBuild

Unified login

The simplest path. One BP node with a platform dropdown:

EOSLoginWithPlatform(Platform, Token, Id?, DisplayName?)

The Platform dropdown shows:

On success, UEOSproSubsystem::GetLocalEpicAccountId() and GetLocalProductUserId() are populated. The OnInitialized, OnAuthLoginChanged, and OnConnectLoginChanged multicast delegates fire.

PIE / dev testing

1. Install Epic Games Launcher and sign in once.
2. Unzip Source/ThirdParty/EOSSDK/DevAuth/EOS_DevAuthTool-win32-x64-1.2.1.zip anywhere.
3. Run the tool, click Login, give it a credential name like DevUser1. Default port is 6547.
4. In PIE call EOSLoginWithPlatform(Developer, Token="DevUser1", Id="127.0.0.1:6547").
5. Press Shift+F1 in PIE — the EOS Social Overlay appears (only after successful Auth).
6. For RTC: open Window → EOS Voice Chat Debugger.

Auth

Epic Games account authentication. Use EOSLoginWithPlatform for the simplified path.

Connect (Product User)

Game-side identity that bridges Epic, Steam, Google, etc. into a single Product User ID.

Sessions

Player-hosted matchmaking sessions (advertised via EOS service).

Lobby

Same shape as Sessions but designed for pre-game / persistent groups. Lobbies can auto-create an associated RTC voice room.

P2P

EOS-relayed peer-to-peer packets.

Friends

Presence

UserInfo

Custom Invites

Modern app-defined invite path independent of sessions / lobby.

The receiver UObject singleton exposes a BlueprintAssignable multicast delegate; bind it from any BP that needs invite-received events. Polling alternative via GetPendingCustomInvites.

EOS Overlay UI

Programmatic control over the EOS Social Overlay (the friends list / invite UI). The overlay also appears via Shift+F1 by default once authenticated.

Achievements

Stats

Leaderboards

Ecom (Epic Games Store)

Direct EOS Ecom integration — Epic Games Store only. For multi-platform purchases see the OSS bridge.

The OSS-v1 FinalizeReceiptValidationInfo call maps to EOSRedeemEntitlements — pass entitlement IDs from EOSGetReceipts.

OSS purchase bridge — cross-platform billing

EOSpro ships with a small bridge that routes purchases through the engine's IOnlinePurchase for whichever Online Subsystem is loaded. You get Epic Games / Steam / Google Play / App Store from one BP graph without branching.

Enable per-platform engine OSS plugins

Progression Snapshot

Server-side snapshot of arbitrary progression key/value pairs. Used for analytics / cross-save bridging.

Player Data Storage

Per-player cloud-saved files. Encrypted with the EncryptionKey in settings.

Title Storage

Read-only server-published files (game assets, remote configs).

RTC — Voice chat

Full Epic RTC interface exposure: join voice rooms, mute self/others, switch devices, get the participant list with talking indicators.

Push-to-talk

Wire TransmitToAllRooms(true) to a key-press event and TransmitToAllRooms(false) to release. The same call applies across every joined room.

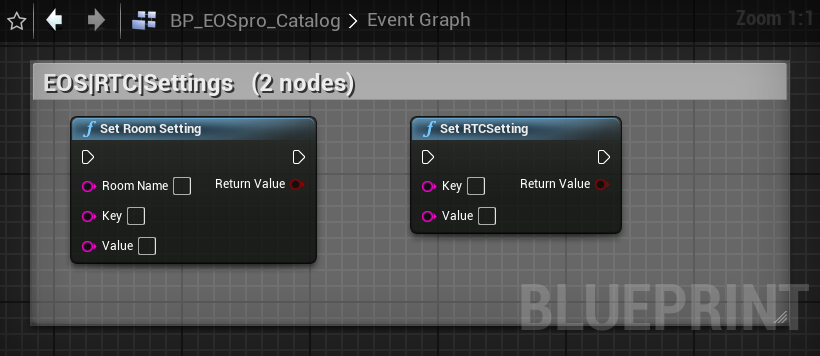

Audio processing knobs

Set these before JoinRoom for them to take effect:

SetRTCSetting("DisableEchoCancelation",  "false")  // = AEC on
SetRTCSetting("DisableNoiseSuppression", "false")  // = NS on
SetRTCSetting("DisableAutoGainControl",  "false")  // = AGC on
SetRTCSetting("DisableDtx",              "false")  // = DTX on (saves bandwidth)

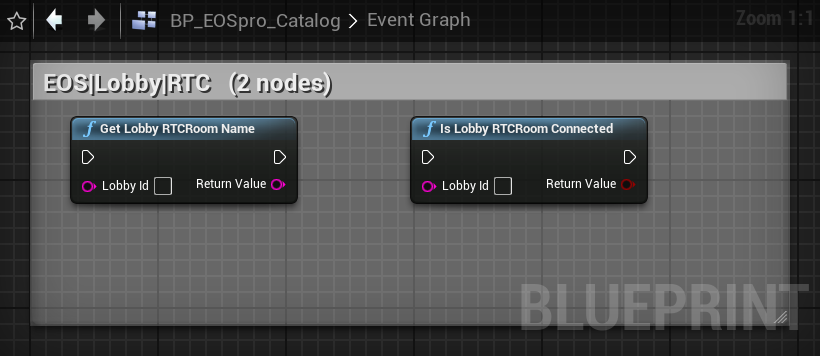

Joining a lobby's auto-voice room

1. EOSCreateLobby(bEnableRTCRoom = true)
2. const FString Room = GetLobbyRTCRoomName(LobbyId)
3. Use Room with GetRoomParticipants / SendSessionInvite / etc.

Voice debugger (editor)

The EOSproEditor module registers a Slate widget that lives in the editor only (not shipped):

Open via:

• Window → EOS Voice Chat Debugger menu entry
• Console command EOSpro.ShowVoiceDebugger (works in PIE too)

Shows live state: current room selector, joined-room participant list (with talking indicators, mute/block buttons per row), local mic-mute toggle, input/output device combo boxes. Polls subsystem state every 0.5s via an active timer.

Anti-Cheat scaffold

EAC client-side wiring. Scaffold means the message bridge and session lifecycle are exposed; you still need to plumb the outbound messages through your game's network channel.

Flow (Client-Server mode)

1. EOSConnectLogin succeeds → local PUID available.
2. BeginClientSession(ClientServer).
3. Each tick: drain PollOutboundServerMessages → forward bytes over your normal server transport.
4. When your server sends AC bytes back to the client → call ReceiveMessageFromServer(bytes).
5. On disconnect: EndClientSession.

P2P mode also requires RegisterPeer per remote player + symmetric peer-message bridging.

Reports

Player behavior reports (moderation).

Category mapping (BP enum is broader than SDK enum): Harassment / HateSpeech / Profanity → VerbalAbuse, NameViolation → OffensiveProfile, ChildAbuse → Other.

Sanctions

Metrics

Mods

Desktop game-mod manager (Epic Mod Marketplace).

Integrated Platform

Notify EOS about the player's login state on the integrated platform (Steam, EGS, etc).

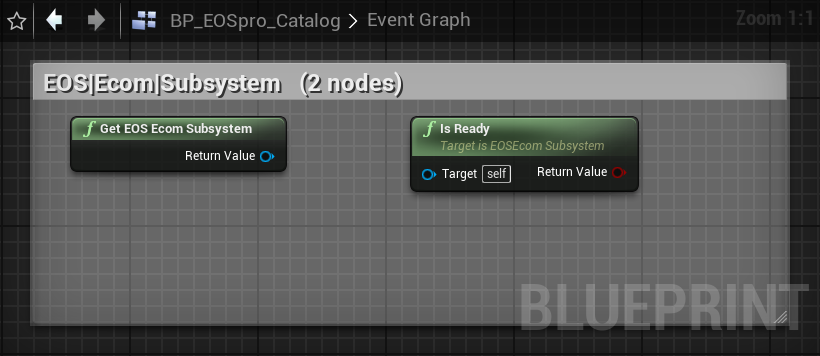

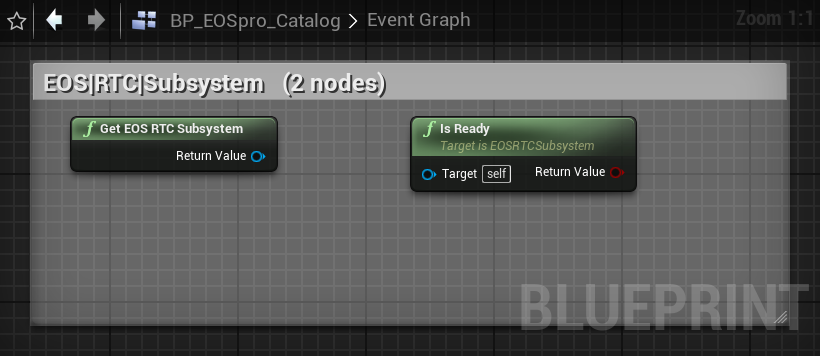

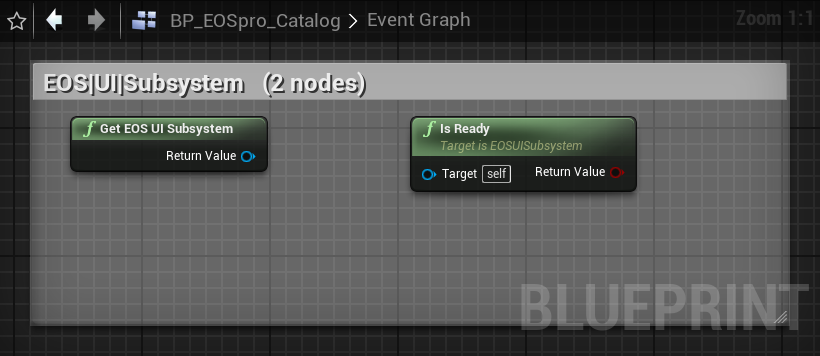

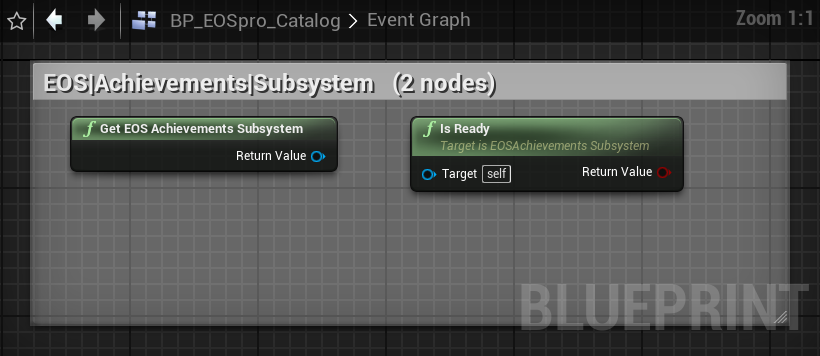

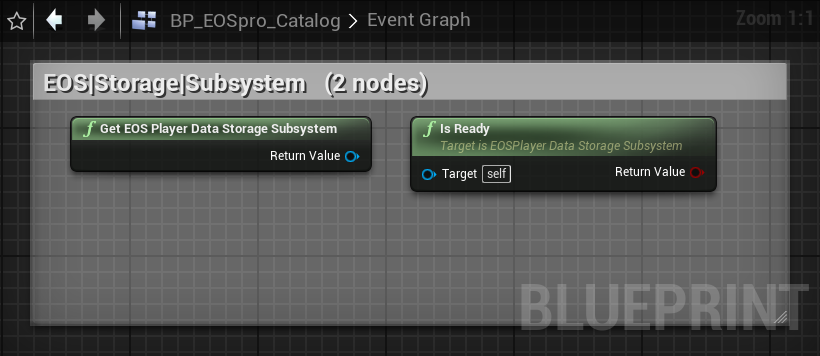

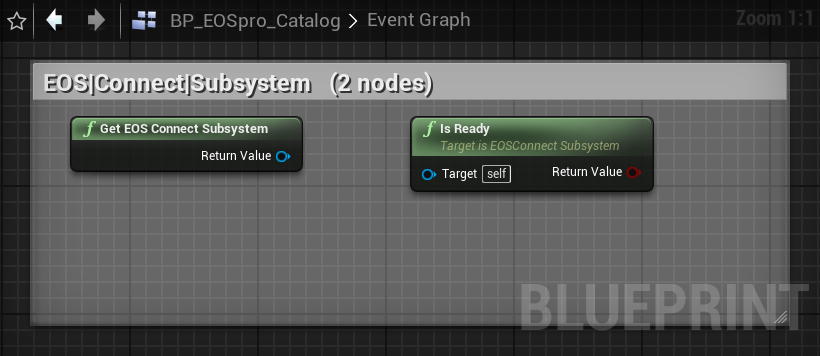

Per-category subsystems

21 thin UGameInstanceSubsystem proxies — typed Blueprint accessors per domain. Each exposes:

• Get(WorldContextObject) — static, returns the subsystem
• IsReady() — pure, true if the underlying EOS interface handle is available

The proxies delegate to UEOSproSubsystem which owns the platform handle. They exist for BP discoverability — "search 'Get EOS Sessions Subsystem'" surfaces the right subsystem cleanly.

UEOSAuthSubsystem, UEOSConnectSubsystem, UEOSFriendsSubsystem,
UEOSPresenceSubsystem, UEOSSessionsSubsystem, UEOSLobbySubsystem,
UEOSUserInfoSubsystem, UEOSAchievementsSubsystem, UEOSStatsSubsystem,
UEOSLeaderboardsSubsystem, UEOSP2PSubsystem, UEOSEcomSubsystem,
UEOSPlayerDataStorageSubsystem, UEOSTitleStorageSubsystem,
UEOSUISubsystem, UEOSMetricsSubsystem, UEOSCustomInvitesSubsystem,
UEOSReportsSubsystem, UEOSSanctionsSubsystem, UEOSRTCSubsystem,
UEOSAntiCheatSubsystem

FAQ

Troubleshooting

Build errors

• "Cannot open include file: 'EOSproTypes.h'" — your Build.cs is missing bLegacyPublicIncludePaths = true. Dependent modules need this too.
• Duplicate function definition under unity build — two .cpp files have the same file-scope static helper (typical: AccountIdToString). Rename one with a file-unique prefix.
• "Target is up to date" but no DLL produced — check that EOSpro is "Enabled": true in your .uproject.

Runtime issues

• EOS Overlay (Shift+F1) doesn't appear — requires successful Auth login. Check UEOSproSettings.bEnableOverlay is true. Renderer must be D3D11/D3D12 (engine default).
• RTC initialization fails on Windows — xaudio2_9redist.dll not at the path passed in EOS_Windows_RTCOptions.XAudio29DllPath. The subsystem resolves this via IPluginManager::FindPlugin("EOSpro")->GetBaseDir() + "/Binaries/Win64/xaudio2_9redist.dll". Verify the DLL was staged.
• SetAudioInputSettings returns failure — requires a valid Connect-logged-in PUID. Make sure EOSConnectLogin completed first; the subsystem applies persisted device settings in SetLocalProductUserId.

SDK version quirks (1.19.0.7)

• EOS_SAT_STRING doesn't exist as an enum value — use EOS_AT_STRING (uppercase) or the macro alias EOS_SAT_String (CamelCase).
• EOS_ECustomInviteFinalizeResult enum doesn't exist — use EOS_EResult::EOS_Success for accept, EOS_Canceled for reject.
• EOS_ACCCP_iOS has a lowercase 'i' (most other platform enum values are uppercase).
• EOS_Auth_VerifyIdTokenCallbackInfo has no AccountId field — decode the JWT sub claim client-side if you need it.
• EOS_PlayerDataStorage_GetFileMetadataCount returns EOS_EResult with out-param count; EOS_TitleStorage_GetFileMetadataCount returns uint32_t directly.

Source layout

Source/EOSpro/
├── EOSpro.Build.cs         (bLegacyPublicIncludePaths = true)
├── Public/
│   ├── Core/                Module, Settings, Subsystem, Types
│   ├── Auth/                AuthLibrary + AuthSubsystem + LoginWithPlatform + …
│   ├── Connect/             ConnectLibrary + DeviceId / Mappings / etc.
│   ├── Sessions/            SessionsLibrary + Find/Join/Update/Invite
│   ├── Lobby/               LobbyLibrary + same shape + RTC-room helpers
│   ├── Friends/ Presence/ UserInfo/
│   ├── Achievements/ Stats/ Leaderboards/
│   ├── Ecom/                Offers, Checkout, Ownership, Receipts
│   ├── Storage/ TitleStorage/
│   ├── P2P/ UI/ Metrics/
│   ├── CustomInvites/ Reports/ Sanctions/
│   ├── RTC/                 EOSRTCLibrary.h holds all 7 voice async classes
│   ├── AntiCheat/
│   ├── Mods/ IntegratedPlatform/ Progression/
│   └── Platform/            OSS bridge for cross-platform purchases
└── Private/                 (mirrors Public)

Source/EOSproEditor/
├── EOSproEditor.Build.cs
├── Public/
│   ├── EOSproEditor.h
│   └── SEOSVoiceChatDebugger.h
└── Private/
    ├── EOSproEditor.cpp    Module + Window menu + console command
    └── SEOSVoiceChatDebugger.cpp
